Explosion Proof Enclosures Ex d Qatar — Complete Technical Guide

In Qatar’s oil & gas facilities, petrochemical plants, and offshore platforms, electrical equipment must be specifically designed and certified to operate safely in environments where flammable gases, vapours, or dusts may be present. Explosion proof enclosures (Ex d) are the most robust solution for protecting electrical components in these hazardous locations.

Autonex is a leading supplier of ATEX-certified explosion proof enclosures and equipment in Qatar, serving major oil & gas operators, EPC contractors, and engineering firms across Doha, Ras Laffan, and Mesaieed.

What is an Explosion Proof Enclosure (Ex d)?

An explosion proof enclosure, designated under the protection concept Ex d (Flameproof), is a specially engineered enclosure capable of containing any internal explosion of a flammable gas mixture without igniting the surrounding atmosphere.

If a flammable gas-air mixture enters the enclosure and is ignited by an electrical arc or spark from the equipment inside, the explosion is safely contained. The enclosure is designed so that hot combustion gases cool sufficiently as they pass through the tight flame paths before reaching the outside atmosphere — preventing propagation of the flame.

Ex d vs Other Protection Concepts

• Ex d (Flameproof) — Contains the explosion inside the enclosure; suitable for Zone 1 and Zone 2
• Ex e (Increased Safety) — Prevents sparks and arcs from occurring; for Zone 1 and Zone 2
• Ex n (Non-Sparking) — For Zone 2 only; less stringent requirements
• Ex p (Pressurised) — Keeps flammable atmosphere out using internal overpressure
• Ex i (Intrinsic Safety) — Limits energy levels so low that ignition is impossible; for Zone 0, 1, and 2

Hazardous Area Zones Where Ex d is Used

• Zone 1 — Flammable gas is likely to be present during normal operations (Ex d is certified for Zone 1 use)
• Zone 2 — Flammable gas is unlikely to be present, but may occur in abnormal conditions (Ex d also certified for Zone 2)

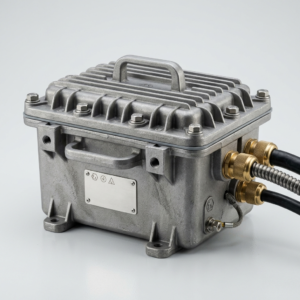

Construction Features of Ex d Enclosures

Explosion proof enclosures are engineered to exacting standards:

• Heavy-wall construction — Typically cast iron, ductile iron, or steel, designed to withstand internal explosion pressure
• Precision flame paths — Machined joints and gaps with very tight tolerances (typically 0.1 to 0.4mm) to quench and cool escaping gases
• Threaded entries — All cable and conduit entries must use certified Ex d glands or plugs to maintain the flameproof integrity
• Robust fixings — Multiple heavy-duty stainless steel bolts ensure the enclosure remains sealed during an internal explosion

Applications in Qatar’s Industrial Sector

• Oil & Gas Processing — Pump control panels, junction boxes, and terminal boxes in Zone 1 process areas
• Petrochemical Plants — Motor starters, isolator switches, and control stations in hazardous areas
• Offshore Platforms — All electrical equipment on Qatar’s offshore installations
• LNG Facilities — Ras Laffan LNG plant electrical infrastructure
• Fuel Storage Terminals — Pump houses and loading/unloading areas
• Paint Spray Booths — Industrial and automotive facilities

Certification Standards

All explosion proof equipment supplied by Autonex in Qatar meets the following standards:

• IEC 60079-0 — General requirements for equipment in explosive atmospheres
• IEC 60079-1 — Specific requirements for Ex d (Flameproof) protection
• ATEX Directive — European certification widely accepted in Qatar and GCC
• IECEx Scheme — International certification for global projects
• QatarEnergy (QP) Standards — Compliance with QP engineering standards for use on QE facilities

Why Choose Autonex for Explosion Proof Equipment in Qatar?

Autonex has extensive experience supplying ATEX and IECEx certified explosion proof equipment to Qatar’s most demanding industrial projects. We provide full technical support including area classification review, product selection, compliance documentation, and installation guidance.

Our dedicated team ensures that every piece of equipment meets the project specification and all relevant Qatari and international safety standards.

Contact Autonex today for a technical consultation or quotation for explosion proof enclosures and associated equipment for your Qatar project.
