In Qatar\’s oil and gas facilities, chemical plants, and other hazardous locations, every electrical connection — no matter how small — must be properly protected against the risk of igniting a flammable atmosphere. Explosion proof junction boxes (Ex d) provide a certified, safe enclosure for cable terminations, splices, and connections in Zone 1 and Zone 2 hazardous areas.
Autonex supplies ATEX and IECEx certified Ex d junction boxes for hazardous area electrical installations across Qatar.
What is an Explosion Proof Junction Box (Ex d)?

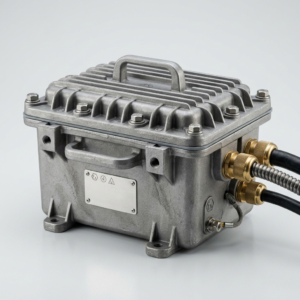

An Ex d junction box is a certified flameproof enclosure specifically designed to house electrical cable connections in hazardous areas. Like all Ex d equipment, it is constructed to contain any internal explosion and prevent ignition of the surrounding flammable atmosphere through precision-machined flame paths at all joints and entry points.
Why Junction Boxes Need Ex d Protection
Even a simple terminal block connection can generate a small spark during connection or disconnection. In a Zone 1 area where flammable gas may be present, this spark could ignite the atmosphere. Ex d junction boxes eliminate this risk by containing any spark or arc within the certified flameproof enclosure.
Key Features of Ex d Junction Boxes
- Heavy-wall cast iron or aluminium alloy construction — Withstands internal explosion pressure
- Precision-machined flanged joints — Flame paths quench escaping combustion gases
- Multiple certified cable entry points — M20, M25, M32 threaded entries for Ex d cable glands
- Stainless steel or zinc-plated fixings — Corrosion resistance for Qatar\’s coastal and industrial environments
- Internal terminal blocks — DIN rail mounted terminals for neat, secure cable connections
- Earthing provision — Internal and external earthing terminals
Ex d vs Ex e Junction Boxes
- Ex d (Flameproof) — Contains explosion; suitable for Zone 1 and Zone 2; heavier and more expensive; for circuits where sparking is possible
- Ex e (Increased Safety) — Prevents sparks through design; lighter and more economical; suitable for Zone 1 and Zone 2 for non-sparking circuits only
Applications in Qatar\’s Hazardous Areas
- Field cable junction points in Zone 1 oil and gas process areas
- Instrument cable terminations on wellheads and process skids
- Motor terminal boxes for Ex d motors
- Lighting circuit junction points in hazardous areas
- Offshore platform electrical infrastructure
Contact Autonex today for Ex d junction box supply and hazardous area electrical solutions across Qatar.
