Description

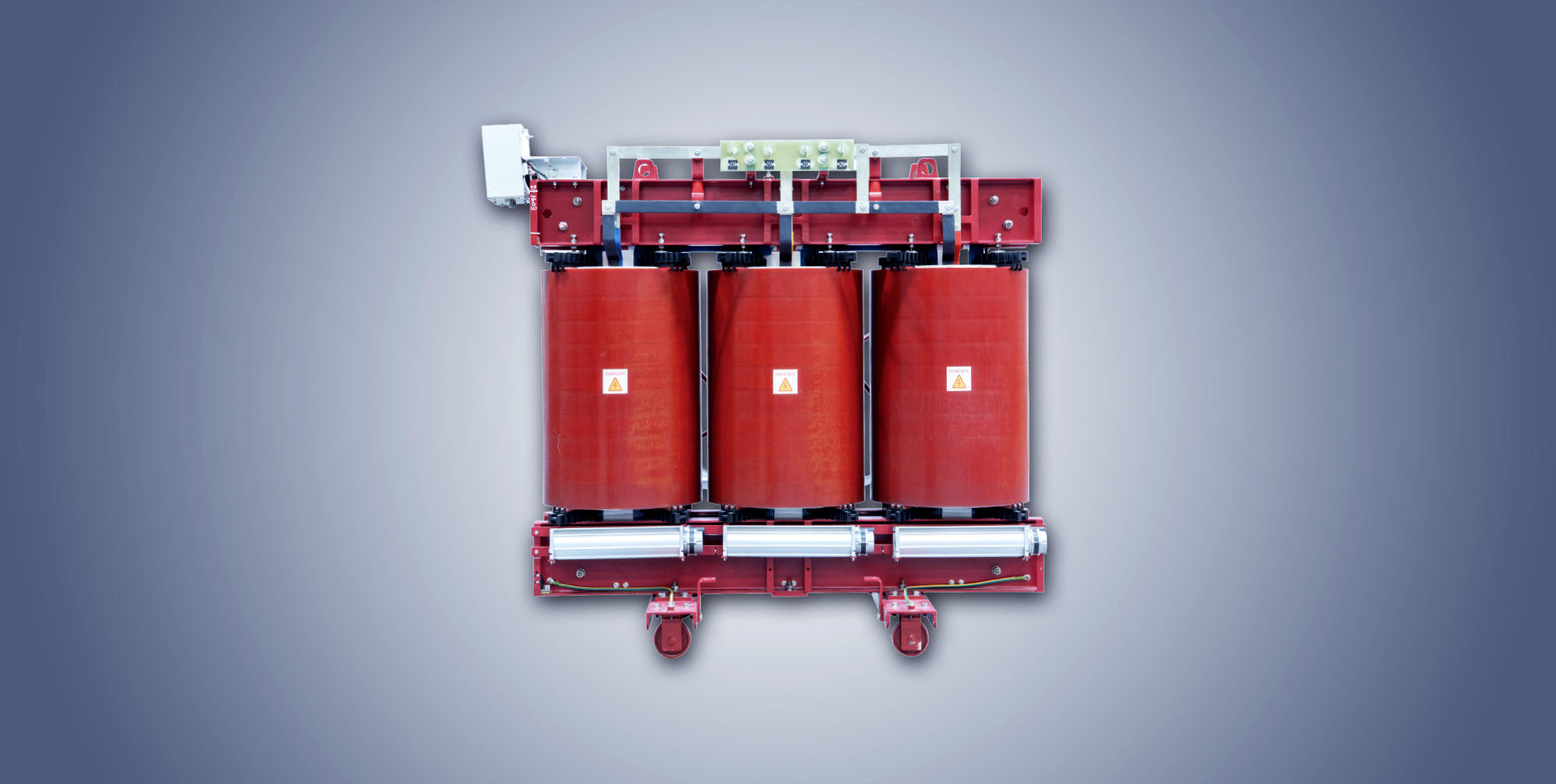

META cast resin dry type transformers are designed for safety and dependable performance in demanding indoor environments. The cast resin design encapsulates the windings in epoxy resin, providing excellent protection against moisture, dust, and corrosive atmospheres.
Primary Deployment Scenarios: Engineered for maximum safety in populated areas, this unit is the standard for Doha indoor power infrastructure and high-rise commercial facilities. Because it is a completely epoxy encapsulated transformer, it eliminates the risk of oil leaks, making it the preferred choice for strict fire-resistant power solutions. Facilities managers heavily rely on this technology to secure stable commercial building electricity while meeting the highest standards for Qatar high-safety electrical distribution.
Application Advantages
- Ideal for indoor installations in commercial, industrial, and public buildings.
- Self-extinguishing and fire-resistant — no risk of oil leaks or fire hazards.
- Low maintenance and long service life.
- Suitable for locations where environmental protection is critical.
Technical Specifications
| Power Rating | Up to 20,000 kVA |
| Voltage | Up to 36 kV |
| Cooling | AN / AF |
| Insulation Class | F |
| Frequency | 50/60 Hz |
| Temperature Rise | 100/80 K |
| Standard | IEC 60076-11 |
