Description

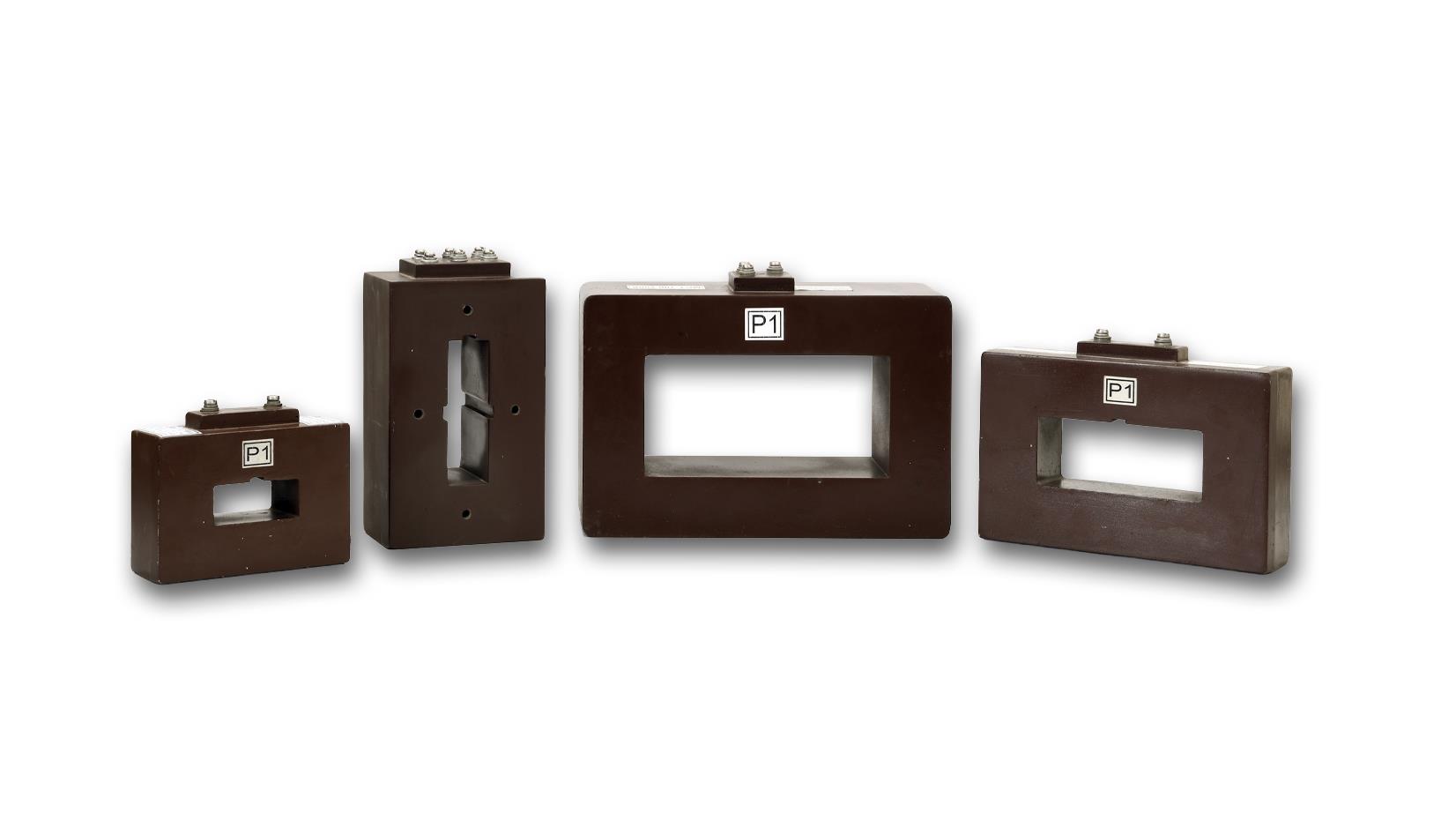

MEMF split core current transformers are designed for retrofit metering and monitoring applications where circuits must remain energized during installation. Their opening core design allows quick mounting around existing conductors, making them well suited to energy audits, retrofit panels, and temporary or permanent measurement points without major shutdown work.
Designed for seamless retrofit installations, this split core model allows fast mounting around energized conductors without requiring system shutdowns. These convenient current transformers coordinate with potential transformers and other instrument transformers to enable rapid sub-metering. By deploying these advanced voltage transformers and electrical measuring devices in Qatar, industrial complexes can monitor energy consumption with minimal installation effort.
Technical Specifications
| Rated Primary Current | Accuracy Class 0.5 | Accuracy Class 1.0 |
|---|---|---|
| 500A | 5.0 VA | 2.5 VA |
| 1000A | 10.0 VA | 10.0 VA |
| 1250A – 5000A | 10.0 VA | 15.0 VA |
Available across multiple frames including MCT-816, MCT-835, MCT-812, and MCT-885.
