Description

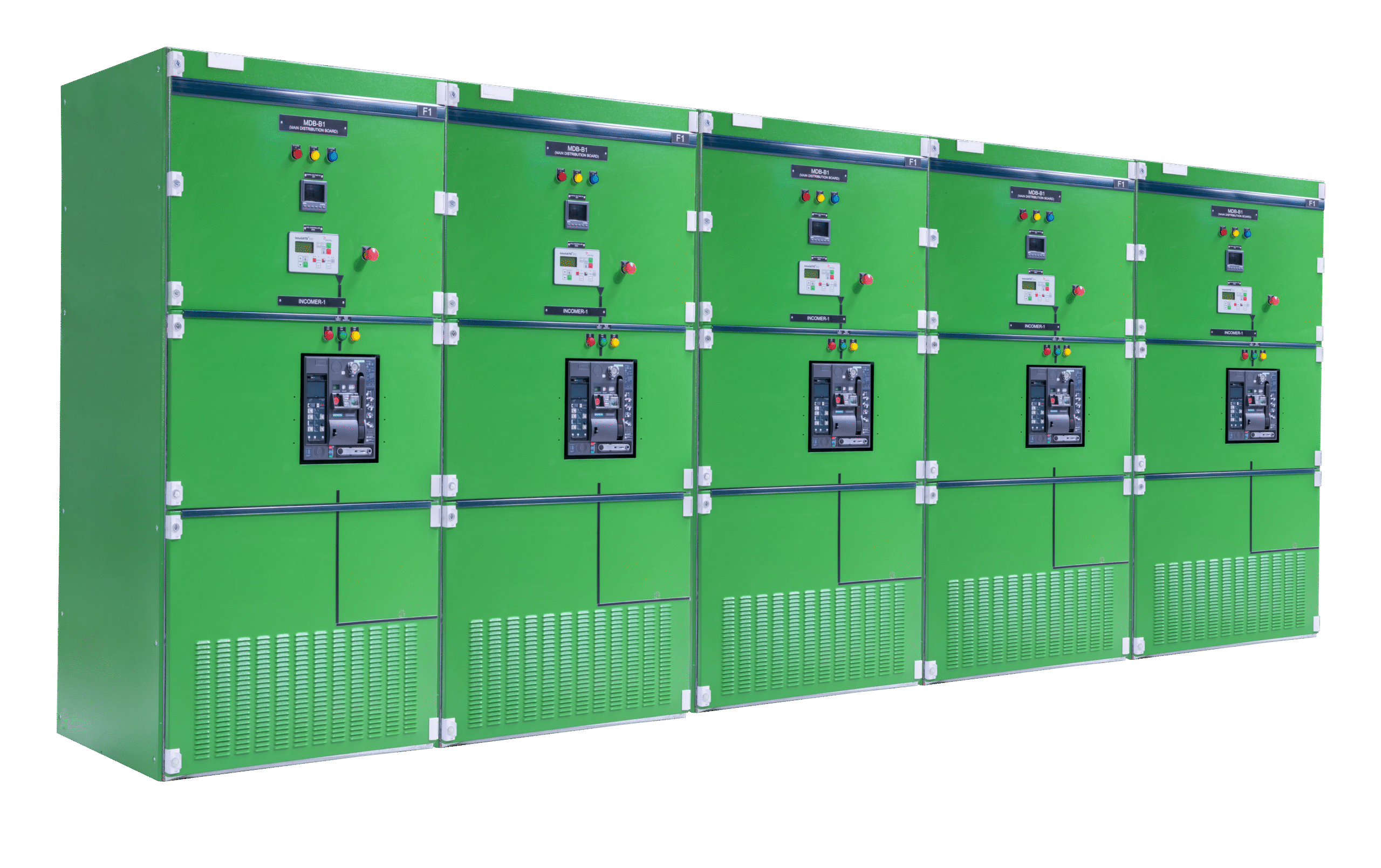

Synchronizing Panels are used to coordinate two or more power sources so they can operate in parallel safely and efficiently. MEMF synchronizing solutions support generator-to-generator, generator-to-utility, and load-sharing applications where stable transfer, controlled sequencing, and balanced power management are required.
Application Advantages
- Supports automatic and manual synchronizing strategies.
- Enables load sharing and load shedding control.
- Suitable for generator plants, standby systems, and industrial utilities.
- Helps maintain stable operation across multi-source power systems.
Technical Specifications
| Material | Manufactured from 1.5/2mm Electro-Galvanised Steel Sheet. |
| Rated Insulation Voltage (Ui) | 690 V |
| Combinations | Various combinations of load transfer by ACBs, MCCBs or Contactors. |
| Protection class | Protection class up to IP 5x. |
| Function | Load sharing/load shedding. |
| Options | Automatic and manual synchronizing |
| Ratings | Ratings up to 7000A |
These panels coordinate and parallel multiple power sources, working in sync with both Low Voltage Switchgear (LV Switchgear) networks and incoming Medium Voltage Switchgear (MV Switchgear) feeders. They manage complex load-sharing demands to optimize overall electrical power distribution efficiency. This advanced synchronization logic works alongside substation assets like Gas Insulated Switchgear (GIS) and main Metal-Clad Switchgear to ensure total system load balance.
