Description

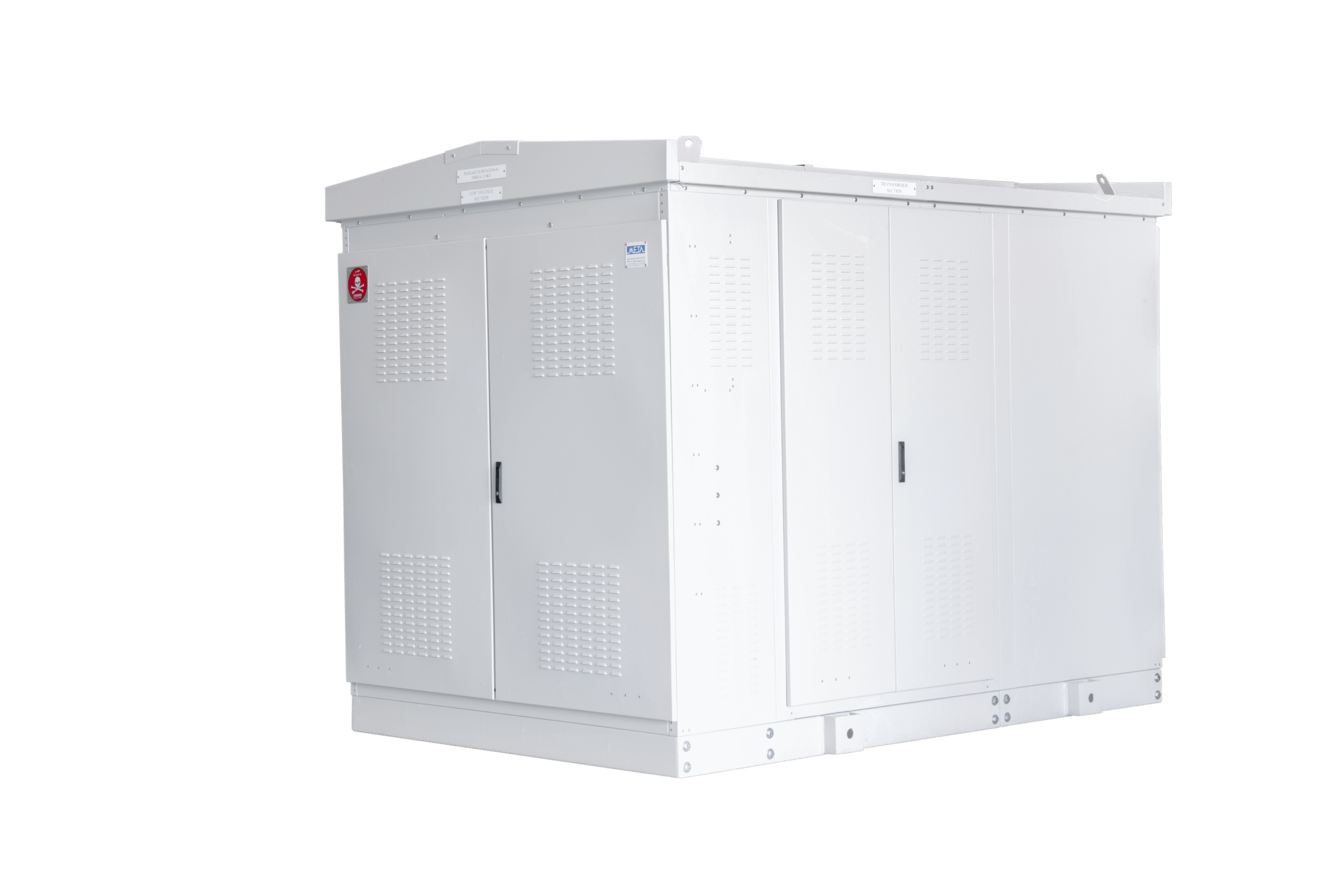

Packaged Substations combine transformer, medium-voltage equipment, and low-voltage distribution into a compact integrated solution for projects where space efficiency, reduced installation time, and coordinated equipment performance are required. MEMF packaged substations are suitable for utility, industrial, and infrastructure deployments that need a ready-to-install power distribution package.
Application Advantages
- Reduces site work through integrated factory assembly.
- Optimizes footprint in constrained project locations.
- Supports coordinated operation of transformer and LV distribution equipment.
- Suitable for outdoor installations in demanding environments.
Technical Specifications
| Rating | Up to 3000 kVA |
| Voltage Class | Up to 36 kV |
| Frequency | 50/60Hz |
| Cooling | ONAN/AN |
| Design Ambient | Up to 55°C |
| Winding Material | Copper and Aluminum |
| Tapping | OCTC with +/-5% in step of 2.5% |
| Construction for oil type | Hermetically Sealed / Gas Cushion |
| Insulating Oil | Mineral Oil / Silicone Oil / Easter Oil |
| Applicable Standards | IEC 60076 |
This compact, ready-to-install package integrates the transformer, incoming Gas Insulated Switchgear (GIS), and outgoing Low Voltage Switchgear (LV Switchgear) components into a single footprint. Designed to receive power directly from Medium Voltage Switchgear (MV Switchgear) networks, it streamlines site work and optimizes local electrical power distribution. This all-in-one substation housing offers a highly reliable alternative to separate, space-consuming Metal-Clad Switchgear installations.
