Description

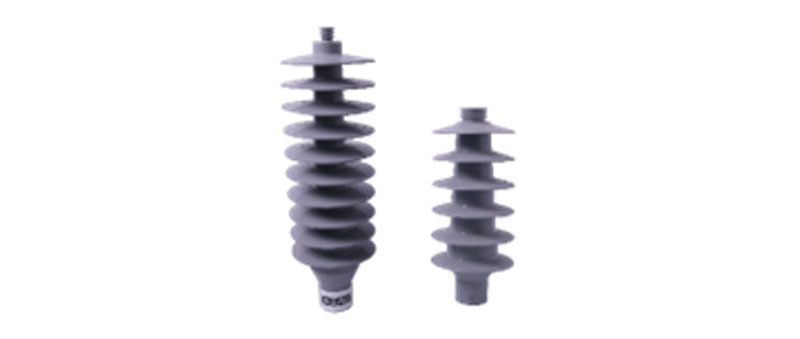

MEMF pre-moulded outdoor terminations up to 33 kV are designed for external cable endings exposed to sunlight, pollution, moisture, and weathering. They provide dependable stress control, insulation performance, and sealing for medium-voltage outdoor installations.
Designed to withstand extreme sunlight and sandstorms, our outdoor pre-moulded terminations provide absolute sealing for exposed MV cable endings. These weather-proof cable accessories feature tracking-resistant rain sheds to prevent surface discharge in humid climates. When terminated with a high-durability cable connector, they coordinate perfectly with screened separable connectors, dead break connectors, and pre-moulded joints in Doha electrical substations.
Technical Specifications
| Voltage Rating | Characteristics |
|---|---|
| Rated Voltage (U₀/U) | 8.7/15kV |
| Highest System Voltage | 17.5kV |
| AC Voltage Withstand | 39kV (5 Min) |
| DC Voltage Withstand | 35kV (15 Min) |
| Basic Impulse Level | 95kV |
| Partial Discharge | <10pC@15kV |
