Description

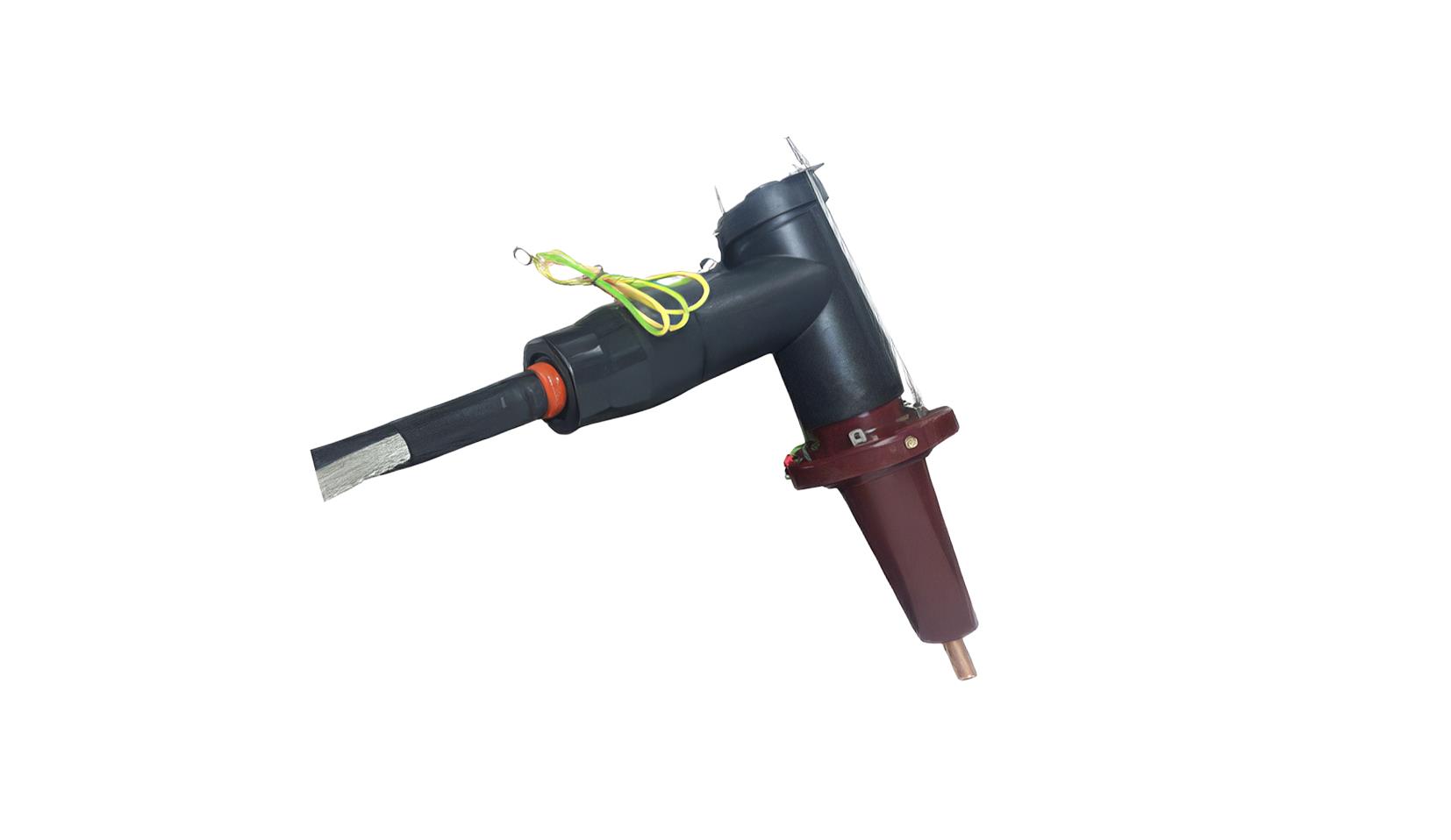

MEMF premold dead break connectors up to 33 kV extend screened, insulated cable connection capability to higher-voltage applications. They are designed for dependable equipment terminations in RMUs, switchgear, and transformer installations requiring strong dielectric performance and consistent sealing.
Engineered to handle higher-voltage operations, our 33kV dead break connectors provide high dielectric strength and long-term stability. These robust cable accessories are fully screened, water-tight, and designed for heavy-duty switchgear packaging. They represent a key cable connector option that integrates with screened separable connectors, dead break connectors, and pre-moulded joints to support Doha power distribution networks.
Technical Specifications
| Voltage Rating | Characteristic (36kV) |
|---|---|
| Rated Voltage (U₀/U) | 18/30kV |
| Highest System Voltage | 36kV |
| AC Voltage Withstand | 81kV (5 Min) |
| DC Voltage Withstand | 72kV (15 Min) |
| Basic Impulse Level | 170kV |
| Partial Discharge | <10pC@30kV |
| Current Rating | Characteristic |
| Continuous Current | 400A |
| Short Time Current | 25kA Sym.@0.17s or 10kA Sym.@3s |
