Description

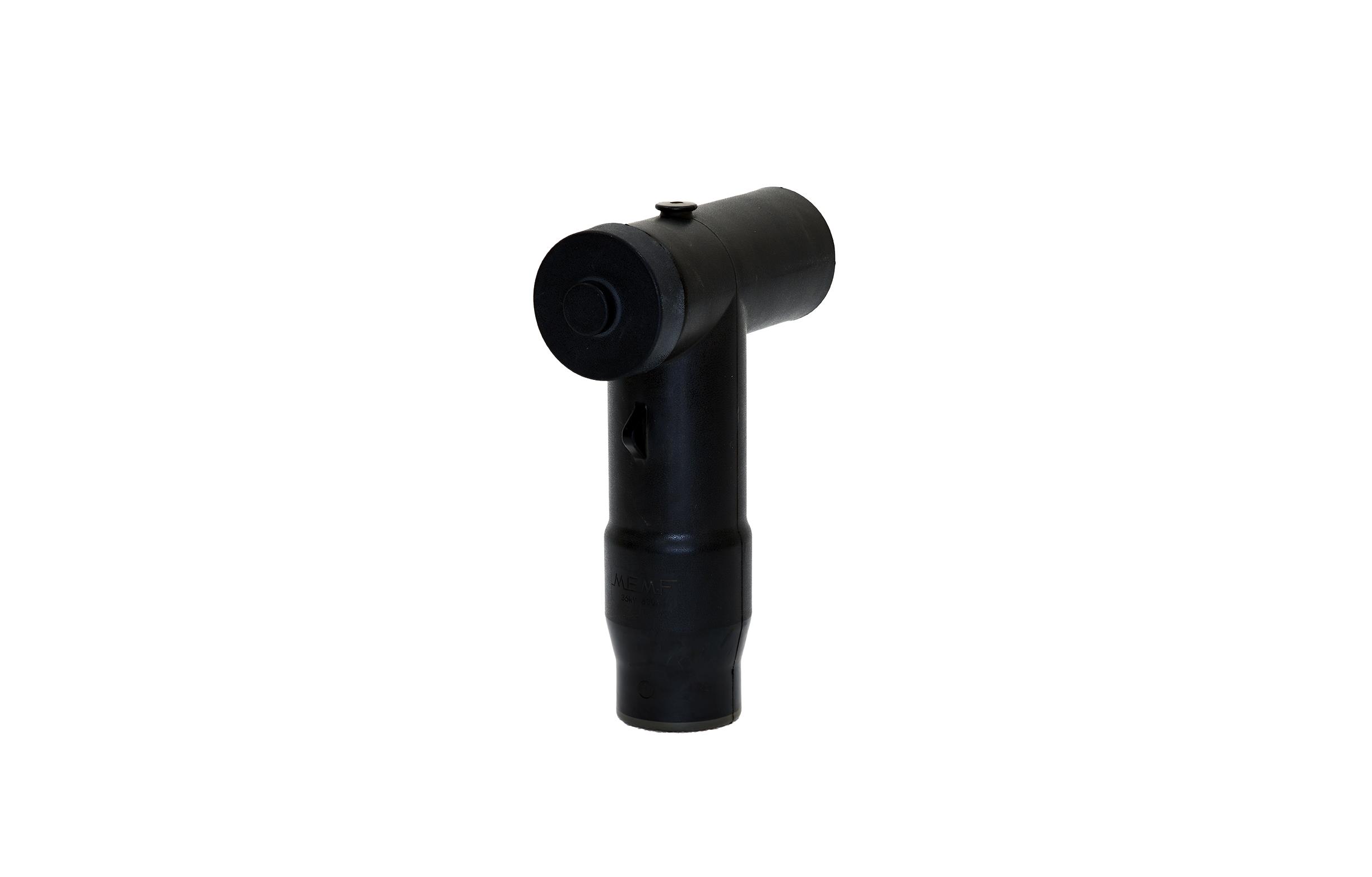

MEMF premold asymmetrical connectors up to 17.5 kV are designed for screened, separable MV cable connections where compact geometry and reliable insulation performance are required. They are suited to switchgear, RMU, and transformer interfaces that demand safe handling and durable field performance.
Offering a compact design for space-constrained installations, our asymmetrical premold connectors deliver exceptional reliability for 17.5kV networks. These flexible cable accessories allow for neat cable routing in ring main units and compact substations. By implementing this reliable cable connector alongside other screened separable connectors, dead break connectors, and pre-moulded joints in Qatar, engineers can safely manage dense industrial electrical grids.
Technical Specifications
| Voltage Rating | Characteristic |
|---|---|
| Rated Voltage (U₀/U) | 8.7/15kV |
| Highest System Voltage | 17.5kV |
| AC Voltage Withstand | 39kV (5 Min) |
| DC Voltage Withstand | 35kV (15 Min) |
| Basic Impulse Level | 95kV |
| Partial Discharge | <10pC@15kV |
| Current Rating | Characteristic |
| Continuous Current | 630A |
| Short Time Current | 25kA Sym.@0.175s or 10kA Sym.@3s |
